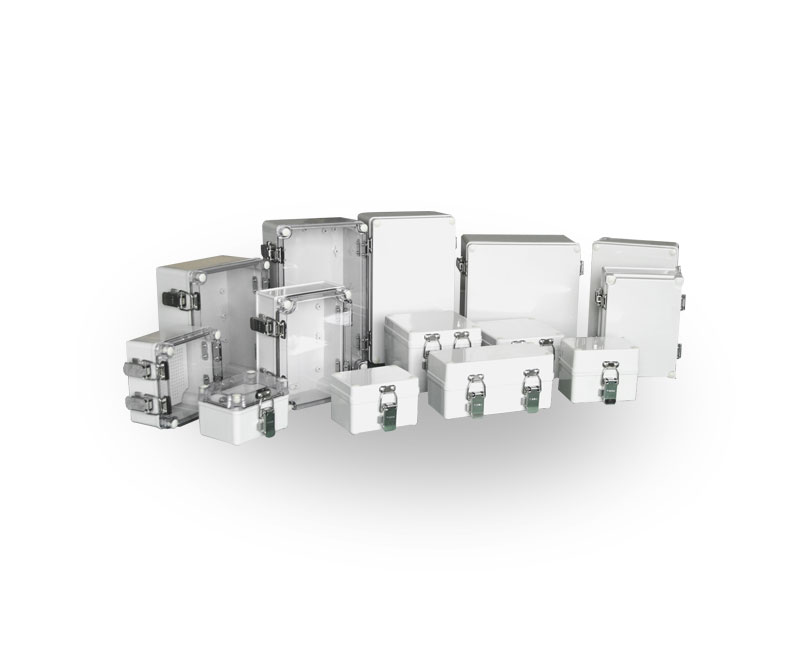

TJ系列-塑料盒（铰链型）

TJ系列-塑料盒（铰链型）

  • 型号规格

  • 尺寸大小

  • 适用配件

  • 行业应用

产品特点

有极好的绝缘性能，抗化学腐蚀和抗机械挤压的性能。达到高要求的lP66防护等级，所有的箱体都防尘、防水、抗800高温。采用ABS、PC等材料制成，外形美观、性能坚固。产品适用于小型终端机、按钮盒、信号机、继电器、计量器、通信用接线盒等设备。

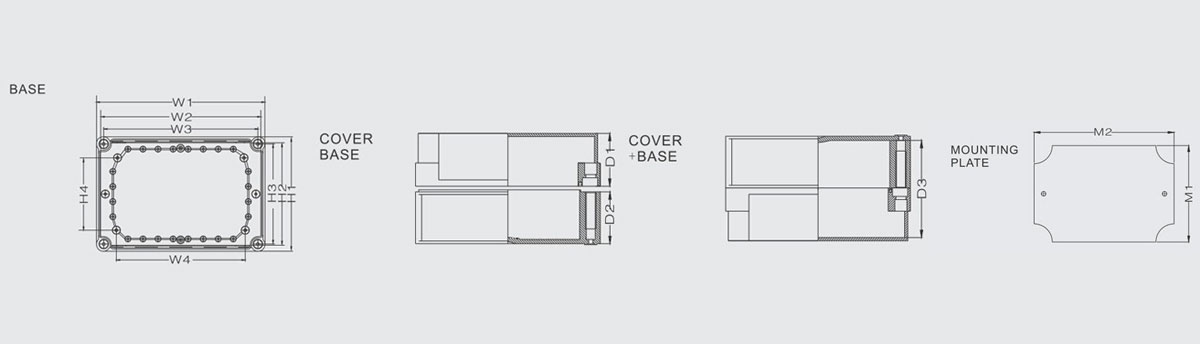

型号规格

尺寸 产品型号 内板型号 金属内板规格
WHD 盖：灰色ABS
盒体：灰色ABS		 盖：透明PC
盒体：灰色ABS		 盖：灰色PC
盒体：灰色PC		 盖：透明PC
盒体：灰色PC		 塑料 金属 M1 M2
200x300x105 TJ-AG-2030H TJ-AT-2030H TJ-PG-2030H TJ-PT-2030H TJ-2030P TJ-2030 180 275
200 x 250 x100 TJ-AG-2025H TJ-AT-2025H TJ-PG-2025H TJ-PT-2025H TJ-2025P TJ-2025 180 228
200x200 x160 TJ-AG-2020-2H TJ-AT-2020-2H TJ-PG-2020-2H TJ-PT-2020-2H TJ-2020P-2 TJ-2020 185 228
200 x 200 x 130 TJ-AG-2020H TJ-AT-2020H TJ-PG-2020H TJ-PT-2020H TJ-2020P TJ-2020 185 185
200x200x125 TJ-AG-2020-1H TJ-AT-2020~1H TJ-PG-2020-1H TJ-PT-2020-1H TJ-2020P TJ-2020 185 185
200 x 200 x 95 TJ-AG-2020-SH TJ-AT-2020-SH TJ-PG- 2020-SH TJ-PT-2020-SH TJ-2020P TJ-2020 185 185
180 x 250 x 100 TJ-AG-1825H TJ-AT-1825H TJ-PG-1825H TJ-PG-1825H -- TJ-1825 160 230
175 x250 x100 TJ-AG-1725-1H TJ-AT-1725-1H TJ-PG-1725-1H TJ-PT-1725-1H TJ-1725P TJ-1725 155 230
175 x 250 x 75 TJ-AG-1725H TJ-AT-1725H TJ-PG-1725H TJ-PT-1725H TJ-1725P TJ-1725 155 230
175 x175 x100 TJ-AG-1717-1H TJ-AT-1717-1H TJ-PG-1717-1H TJ-PT-1717-1H TJ-1717P TJ-1717 159 159
175 x175 x 75 TJ-AG-1717H TJ-AT-1717H TJ-PG-1717H TJ-PT-1717H TJ-1717P TJ-1717 159 159
150x250x160 TJ-AG-1525-3H TJ-AT-1525-3H TJ-PG 1525-3H TJ-PT-1525-3H TJ-1525P TJ-1525 135 235
150 x 250 x130 TJ-AG-1525-2H TJ-AT-1525-2H TJ-PG-1525-2H TJ-PT-1525-2H TJ-1525P TJ-1525 135 235
150x250 x130 TJ-AG-1525-1H TJ-AT-1525-1H TJ-PG-1525-1H TJ-PT-1525-1H TJ-1525P TJ-1525 135 235
150 x 250 x100 TJ-AG-1525H TJ-AT-1525H TJ-PG-1525H TJ-PT-1525H TJ-1525P TJ-1525 135 235
150x200 x160 TJ-AG-1520-3H TJ-AT-1520-3H TJ-PG-1520-3H TJ-PT-1520-3H TJ-1520P TJ-1520 136 185
150x200 x130 TJ-AG-1520-2H TJ-AT-1520-2H TJ-PG-1520-2H TJ-PT-1520-2H TJ-1520P TJ-1520 136 185
150x200x130 TJ-AG-1520-1H TJ-AT-1520-1H TJ-PG-1520-1H TJ-PT-1520-1H TJ-1520P TJ-1520 136 185
150 x 200 x100 TJ-AG-1520H TJ-AT-1520H TJ-PG-1520H TJ-PT-1520H TJ-1520P TJ-1520 136 185
150 x 200 x 75 TJ-AG-1520-SH TJ-AT-1520-SH TJ-PG-1520-SH TJ-PT-1520-SH TJ-1520P TJ-1520 136 185
140 x 230 x 95 TJ-AG-1423H TJ-AT-1423H TJ-PG-1423H TJ-PT-1423H TJ-1423P TJ-1423 125 215
140 x170 x 95 TJ-AG-1417H TJ-AT-1417H TJ-PG-1417H TJ-PT-1417H TJ-1417P TJ-1417 127 154
120x220x85 TJ-AG-1222H TJ-AT-1222H TJ-PG-1222H TJ-PT-1222H TJ-1222P TJ-1222 95 175
120 x 200 x 75 TJ-AG-1220H TJ-AT-1220H TJ-PG-1220H TJ-PT-1220H TJ-1220P TJ-1220 95 175
125x175 x100 TJ-AG-1217-1H TJ-AT-1217-1H TJ-PG-1217-1H TJ-PT-1217-1H TJ-1217P TJ-1217 112 162
125x175 x75 TJ-AG-1217H TJ-AT-1217H TJ-PG-1217H TJ-PT-1217H TJ-1217P TJ-1217 112 162
125 x 125 x 100 TJ-AG-1212H TJ-AT-1212H TJ-PG-1212H TJ-PT-1212H TJ-1212P TJ-1212 112 112
125 x 125 x 75 TJ-AG-1212-SH TJ-AT-1212-SH TJ-PG-1212-SH TJ-PT-1212-SH TJ-1212P TJ-1212 112 112
110x180 x105 TJ-AG-1118-1H TJ-AT-1118-1H TJ-PG-1118-1H TJ-PT-1118-1H TJ-1118P TJ-1118 98 168
110 x 180 x 90 TJ-AG-1118H TJ-AT-1118H TJ-PG 1118H TJ-PT-1118H TJ-1118P TJ-1118 98 108
100 x 100 x 100 TJ-AG-1010-1H TJ-AT-1010-1H TJ-PG-1010-1H TJ-PT-1010-1H TJ-1010P TJ-1010 80 80
100 x 100 x 75 TJ-AG-1010H TJ-AT-1010H TJ-PG-1010H TJ-PT-1010H TJ-1010P TJ-1010 80 80
80x250xl00 TJ-AG-0825-2H TJ-AT-0825-2H TJ-PG-0825-2H TJ-PT-0825-2H TJ-0825P TJ-0825 67 237
80 x 250 x 85 TJ-AG-0825-1H TJ-AT-0825-1H TJ-PG-0825-1H TJ-PT-0825-1H TJ-0825P TJ-0825 67 237
80 x 250 x 70 TJ-AG-0825H TJ-AT-0825H TJ-PG-0825H TJ-PT-0825H TJ-0825P TJ-0825 67 237
80 x 220 x 70 TJ-AG-0822H TJ-AT-0822H TJ-PG-0822H TJ-PT-0822H TJ-0822P TJ-0822 67 209
80x 180 x85 TJ-AG-0818-1H TJ-AT-0818-1H TJ-PG 0818-1H TJ-PT-0818-1H TJ-0818P TJ-0818 70 170
80 x 180 x 70 TJ-AG-0818H TJ-AT-0818H TJ-PG-0818H TJ-PT-0818H TJ-0818P TJ-0818 70 170
80 x 160 x 90 TJ-AG-0816H TJ-AT-0816H TJ-PG 0816H TJ-PT-0816H TJ-0816P TJ-0816 67 151
80 x 130 x 85 TJ-AG-0813-1H TJ-AT-0813-1H TJ-PG-0813-1H TJ-PT-0813-1H TJ-0813P TJ-0813 67 117
80 x 130 x 70 TJ-AG-0813H TJ-AT-0813H TJ-PG-0813H TJ-PT-0813H TJ-0813P TJ-0813 67 117
80 x 110 x 85 TJ-AG-0811-1H TJ-AT-0811-1H TJ-PG-0811-1H TJ-PT-0811-1H TJ-0811P TJ-0811 61 91
80 x 110 x 70 TJ-AG-0811H TJ-AT-0811H TJ-PG-0811H TJ-PT-0811H TJ-0811P TJ-0811 67 91
80 x 80 x 85 TJ-AG-0808-1H TJ-AT-0808-1H TJ-PG-0808-1H TJ-PT-0808-1H -- TJ-0808 65 65
75 x 125 x 100 TJ-AG-0712-1H TJ-AT-0712-1H TJ-PG-0712-1H TJ-PT-0712-1H TJ-0712P TJ-0712 60 110
75 x 125 x 75 TJ-AG-0712H TJ-AT-0712H TJ-PG-0712H TJ-PT-0712H TJ-0712P TJ-0712 60 110
